In this video, the maximum operating clock frequencies for 4-bit Asynchronous and Synchronous counter was calculated.
Here is the detail of the Quiz.
Question:

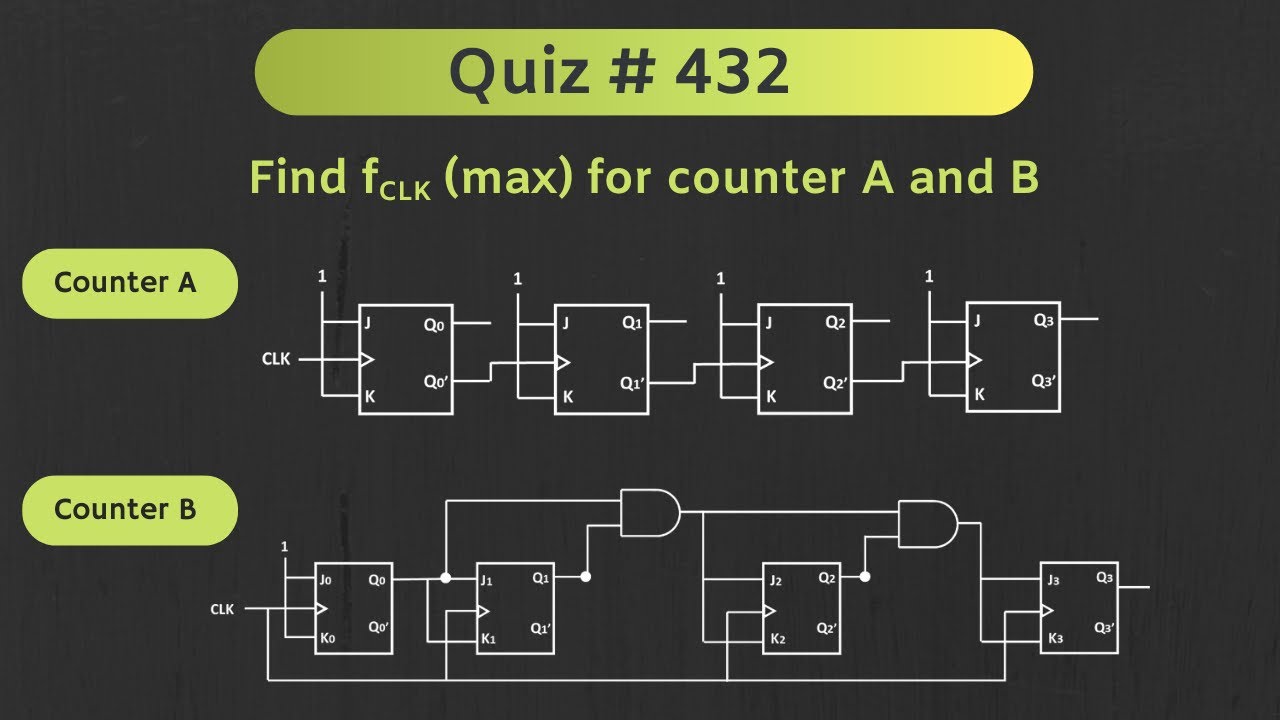

For the given counter circuits A and B, the propagation delay of each Flip-Flop and each AND gate is 20 ns and 5 ns respectively. The maximum allowable operating clock frequencies for the two counters A and B are
Options:
A) 12.5 MHz and 50 MHz
B) 50 MHz and 40 MHz
C) 12.5 MHz and 33 MHz
D) 12.5 MHz and 40 MHz
Subject: Digital Electronics
Topic: Counters
For more information, check the related videos on Counter:
1) Synchronous Counter Explained (Part-1)
2) Effect of Propagation Delay in Ripple Counter:
More solved examples on Digital Electronics:
#ALLABOUTELECTRONICSQuiz
#digitalelectronics
#sequentialcircuits
#counter
The Quiz will be helpful to all the students of science and engineering for preparing for university or competitive exams (GATE, IES, RRB JE, etc.)
